Precise inspection of all components for error-free assemblies
Camera inspection for manual and automatic THT/PTH board assembly. Optional worker guidance with single step testing for 100% tested PCB boards.
Download
Product Features
Reliable error detection
· Presence, location, position of components
· Component color and lettering
· Reverse polarity, twisting, tilting
· Recognition of DMC/barcode on the test page without an additional reader
High test depth and large test field
· High-resolution color camera
· Non-reflecting lighting
· Customizable test field and resolution
· Check in ~1 second
Clear operation
· Display of the error position and display of error and comparison image
· Identical representation on the test system and repair stations
· Error type is assigned to statistics by pressing a button
· Employees can be trained in just a few minutes
Statistics and process control
· Traceability by evaluating barcodes/2D codes/RFID
· Cost savings through fast process optimization
· Intuitive test plan creation
· graphical interface
· Powerful and flexible checking algorithms

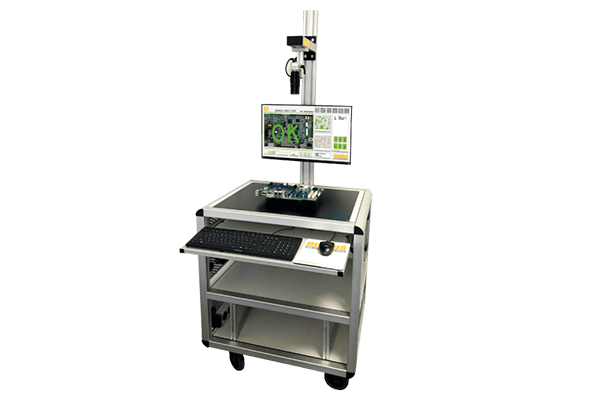

Camera system directly at the assembly workstation
Line integration
· Inspection directly at the workplace eliminates walking distances and loss of time
· Seamless integration into the production process
· Simple conveyor belt connection possible
· Integrated repair station for solder joints AOI systems
