Intelligent error detection with adaptive algorithms

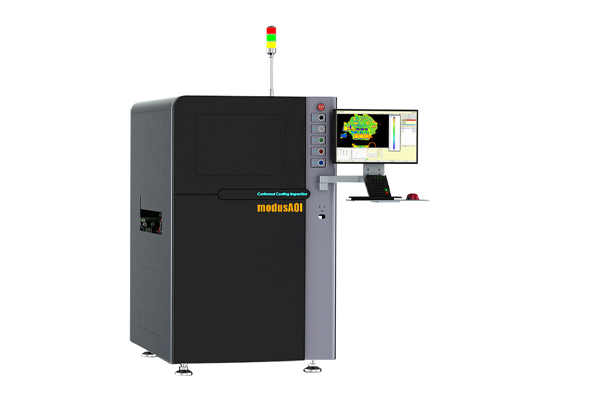

Inline system for testing conformal coating – reliably detects cracks, bubbles, and defects of missing coating for safe and error-free coatings.
Download
Product Features
Quality through process control
· varnish zone (area)
· varnish splashes (completely) up to 100um
· recognition of DMC / barcode on the verification side without additional reader
High inspection depth and large test facility
· high-resolution color scanner

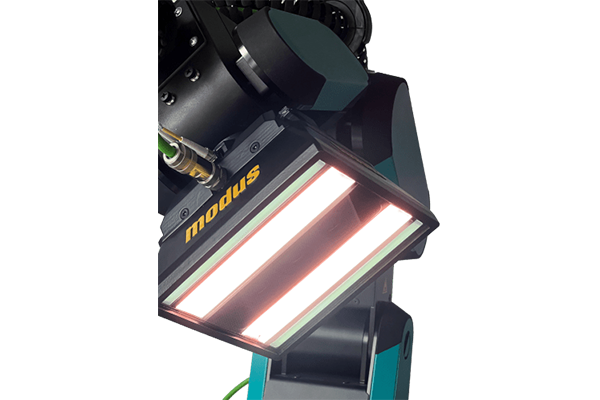

· multi-color LED lighting
· real 24-bit color, 14.040x20.400 Pixels per scan
· Test range: max. 420mm * 530mm
· High speed: 25mm/sec
· Achromatic lens for parallax free display
Simple user interface
· Indication of fault location and display of error and comparison image
· Identical presentation to the test system and repair stations
· Fault is easily assigned by pressing the statistics button
· Training of operators within minutes
Statistics and process control
· Traceability by evaluating barcode/2D-Code/RFlD
· Cost savings due to fast process optimization
· Intuitive test plan creation
· GUI
· Powerful and flexible test algorithms
Line integration
· Inspection of the PCB bottom side without flip unit
· Seamless integration into the manufacturing process behind the selective and wave soldering system
· Double-sided inspection of varnish inside line cycle time within one unit
· Flexible repair station concepts
· Easy integration into the placement line
· Data mapping by barcode/2D-Code/RFlD
Offline-system

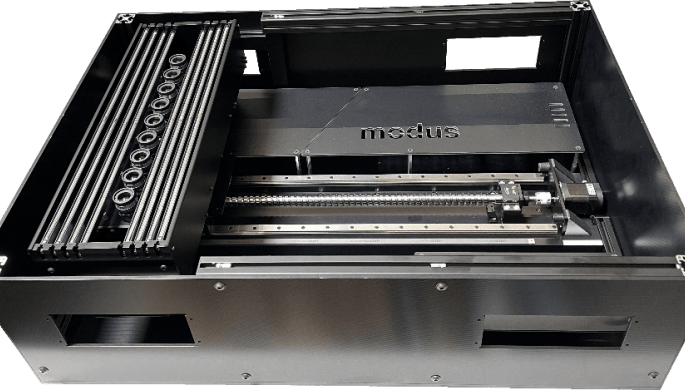

· Easy handling with drawer and variable PCB fixtures modus high-tech electronics GmbH
